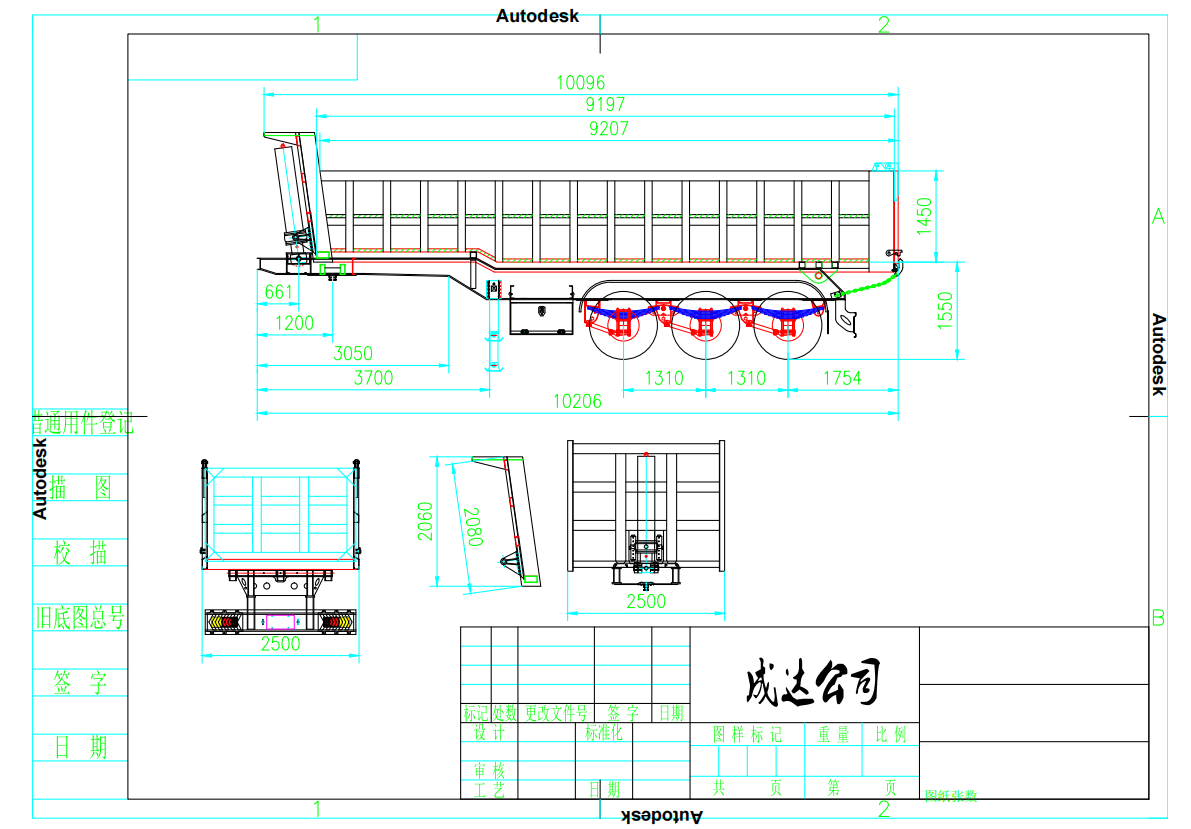

Dimension: 9.3*2.5*3.05m (outside)
Capcaity: 40Cubic Meters or customized
Shape : Square Shape
Landing Gear: FUWA Brand
Axle: 3 axles
Suspension: Mechanical / Air bag
Tire: 12R22.5; 315/80R22.5; 12.00R20
| Specifications | ||
| Tank Body | ||
| Shape | U shape | |
| Box Dimension | 45Cubic | |
| Payload | 80T | |
| Tare weight | About 12T | |
| Lifting system | HYVA Brand | |
| Chassis | ||
| Frame | Welding design or Special design Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel material | |
| Frame Beam(Heavy duty ) | Upper and lower plate is 14mm and 16mm, Double middle is 8 mm.Height is 500 mm | |
| Steel thickness | Bottom plate :8mm Side plate:6mm | |
| Axle | 4 axles | |
| Landing Gear | 28T lifting capacity with two speed | |
| King Pin | 2.00 or 3.5 inch bolt-in king pin | |
| Suspension | Mechanical suspension | |
| Leaf Spring(Strength) | 90mm(W)*16mm(T)*10 Layer | |
