| technical data | specifications |

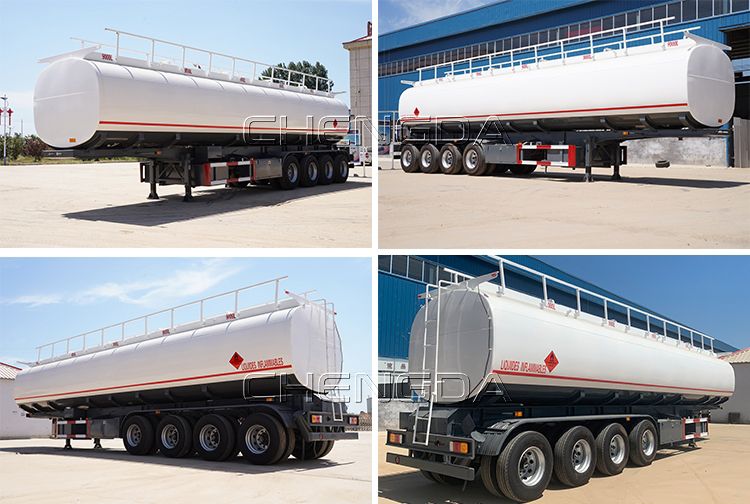

| tanker for oil transportation | capacity 45000liter |

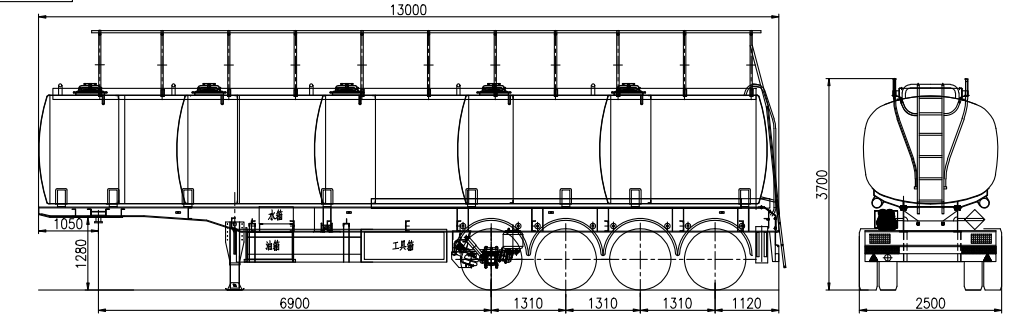

| dimension approximately | Length 13000mm wide 2500mm height 3700mm 3.5’’ jost brand(bolts type) |
| Net weight:approximately | 13100kg |
| Shape of the tank | oval |
| equipment | Steel Q235,thickness of the tank,tanker body is 5mm,sealing head is 6mm |

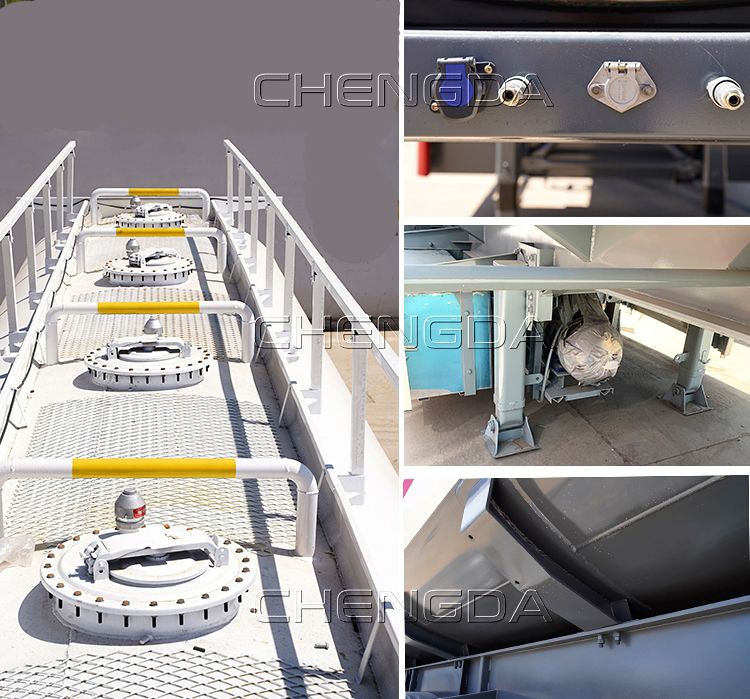

| manhole | Diameter 500mm,5 pieces,with 24 pieces hole |
| Compartments | Compartments:9000L+9000L+9000L+9000L+9000L the thickness is 5mm |
| Discharge valve | Aluminum api valve 4’’,have five pieces of quaick disconnect. |
| Bottom valve(with pneumatic switch) | Pneumatic switch in the discharge valve box,five pieces |
| chassis | Material:steel Q345 |
| Leg jost model | Jost C200T |
| Collision protecthion bumper | Equipped with collision protection bumper on each side,the height from ground to the collision is 500mm |
| mudguard | standard |
| axle | Fuwa 13t/per axle,with two sets ABS,four axles,front axle can be lifted. |
| suspensions | Air suspension and mechanical suspensions |
| Tires and rims | 17 pieces of tires:315/80R22.5 triangle brand and 17 pcs of rims:9.00-25 |
| Electrical equipment | The electrical system meet the ADR standard. |
| marking | -yellow reflective |
| 800liter fuel tank | Placed at the back of leg(square). |
| Hose carrier | -hose carriers at each side(6500mm length) |
| hose | 2 hoses DN80 of 600mm length each |
| fire | 2 fires extinguisher 8kg |
| walkway | fence |
| Double guard on the tank | Double guard on the tank walkway with ground control,aslo with one line at the middle,two lines at each side,diameter is 6mm,with no-skid paper,the guard need extend to the front. |
| Nati static copper screw | 4 pieces |
| Plate with code for diesel | Loading oil level 33/1203 |
| Product danger code and class number | Flame drawing and product class 3 pieces |
| triangular reflector | One each side. |
| Tool box | 1.5m |
| Water tanker | 70litre the cap need add lock,and at the hole(by bolts) for clean |
| Rear bumper | Plate thickness to be 10mm |
| Screw tightness indicator | With (80pieces) |
| At fifth compartment | Have one down pipe |
| Liquides | Dimension:100cm*15cm |
| Inflammables | Letter:5cm*10cm three pieces |
