Used howo tractor truck 6X4

· Engine Power : 336HP/371HP/420HP

· Wheel Base : 3200mm

· Loading Capacity -Tractor truck, also semi trailer truck, is usually combination of a tractor unit and one or more semi-trailers to carry freight.

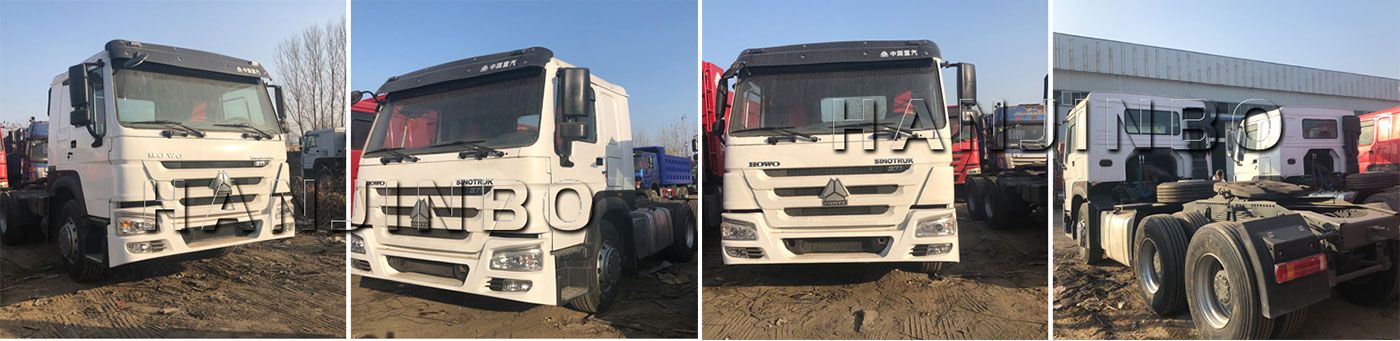

HOWO 6x4  trACTOR trUCK

SPECIFICATION

EngineMake: SINOtrUK Disel:4-Stroke direct injection diesel engine Engine model:WD615.69,Euro II 6-cylinder in line, 4-stroke, water cooled, turbocharged, direct injection Maximum output: 336hp(247KW) at 2200 rpm Maximum torque: 1350Nm at 1100-1600 rpm Displacement:9.726L Bore:126mm Stroke:130mmMake: SINOtrUK Disel:4-Stroke direct injection diesel engine Engine model:WD615.47,Euro II 6-cylinder in line, 4-stroke, water cooled, turbocharged, direct injection Maximum output: 371hp(273KW) at 2200 rpm Maximum torque: 1500Nm at 1100-1600 rpm Displacement:9.726L Bore:126mm Stroke:130mmMake: SINOtrUK Disel:4-Stroke direct injection diesel engine Engine model:D12.42,Euro II 6-cylinder in line, 4-stroke, water cooled, turbocharged, direct injection Maximum output: 420hp(309KW) at 2000 rpm Maximum torque: 1820Nm at 1100-1500 rpm Displacement:11.596L Bore:126mm Stroke:155mm

ClutchSingle-plate dry coil-spring clutch, diameter 430mm,hydraulically operating with air assistance.

transmissionHW19712,  12 forward, 2 reverse HW19710,  10 forward, 2 reverse

Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange

Front AxleHF9 Steering with double T-cross section beam

Rear AxlesHC16 Pressed axle housing, central single reduction with planetary wheel reduction and with differential lock

ChassisFrame: U-profile parallel ladder frame with section of 300×80×8mm and reinforced subframe, all cold riveted cross members

Aluminum fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis

SteeringZF power steering, model ZF8098,hydraulic steering with power assistance.  Ratio: 22.2-26.2

Braking SystemService brake: dual circuit compressed air brake. Parking brake(emergency brake):spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

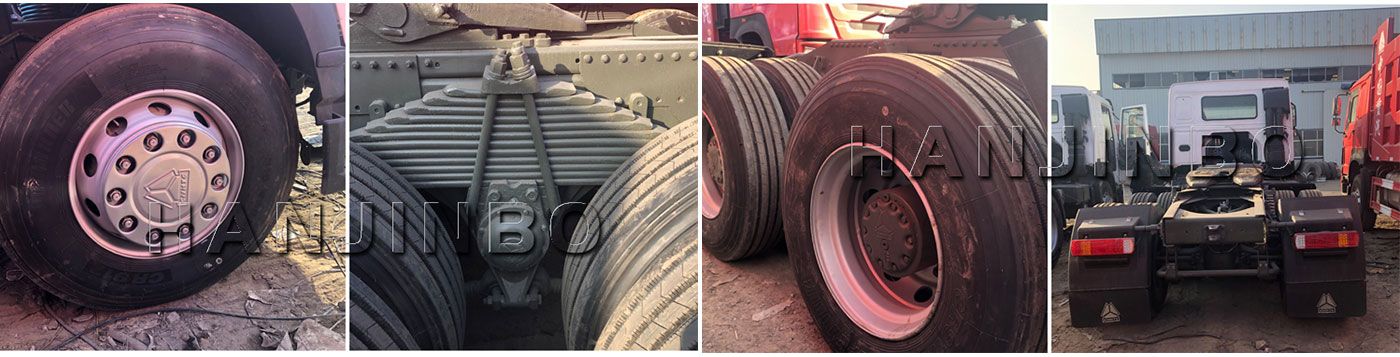

Tyres12.00R20, 11pics, radial tyres 315/80R22.5, 295/80R22.5, 12R22.5

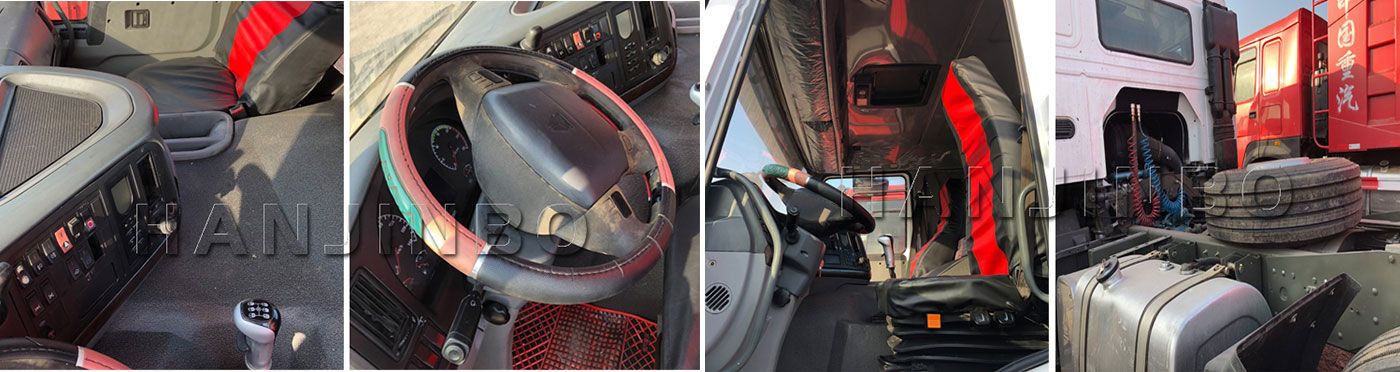

CabHW76 Cab, one berth, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen  wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension + shock absorbers

Electrical SystemOperating voltage:24V,negative grounded
Starter:24V.7.5Kw
Alternator:3-phase,28V,1500W
Batteries:2*12V,165Ah/180Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

InstrumentActive check central controller with indicators, with this integral instrument the daily manual checks on the

vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure

and battery charging.

Dimensions in mmWheel base                                                 3225+1350

Front wheel track                                            2022

Rear wheel track                                            1830

Front overhang                                              1500

Rear overhang                                               725

Approach angle(°)                                            16

Departure angel(°)                                            70

Overall length                                                6800

Overall width                                                 2496

Overall height                                                2958

Weight in kgDead weight                                                 9200

Front axle loading capacity                                    7000

Rear axle loading capacity                                 18000/18000

PerformanceMaximum driving speed(km/h)                                 102

Fuel consumption(L/100km)                                  30-33
